GeoQL-4B: Text-to-OverpassQL with SFT and GRPO

A 4B parameter local model that compiles natural language requests into executable OverpassQL queries for OpenStreetMap, trained with supervised fine-tuning followed by GRPO with a metric-as-reward objective.

Base model: Qwen/Qwen3-4B-Instruct-2507 Benchmark: OverpassNL (Staniek et al., TACL 2024), 6,352 train / 1,000 dev / 1,000 test Models: Melikshah/GeoQL-4B-SFT

Headline result and honest summary. SFT worked and produced a usable model at 68.49 official dev OQS. GRPO on top of it moved the score to 68.72 OQS, a gain of +0.23, which is within run-to-run noise. The reinforcement learning stage, which was the central research bet of this project, did not deliver. This README documents why, with the measurements that support each claim, because the negative result is the most useful thing this repository contains.

---

1. Results

1.1 Main table (official OverpassNL evaluation, dev split, n=1000)

Stage	Model / checkpoint	OQS	EM	chrF	kv_overlap	xml_overlap
Baseline	Qwen3-4B-Instruct, 0-shot	30.93*	0.00	23.39	29.02*	40.37*
Baseline	Qwen3-4B-Instruct, 5-shot	53.09*	1.90	49.94	38.55*	70.77*
SFT r32	sft_full_r32, epoch 3	66.36	14.20	69.89	60.00	69.18
SFT r64	sft_noaux_r64 ckpt-796	68.24	18.20	72.36	61.60	70.77
SFT r64	sft_full_r64 ckpt-1720	68.49	18.30	72.22	61.88	71.38
GRPO	grpo_r32 ckpt-100	68.42	18.20	72.28	61.75	71.23
GRPO	grpo_r32 ckpt-200	68.55	18.40	72.41	61.78	71.47
GRPO	grpo_r32 ckpt-300	68.43	17.40	72.39	61.68	71.22
GRPO	grpo_r32 ckpt-400	68.31	17.90	72.39	61.26	71.26
GRPO	grpo_r32 ckpt-500	68.72	17.40	72.83	61.69	71.63

* Baseline rows are offline proxy scores (see section 3.2), not official convert-based scores.

1.2 Against published systems on the same benchmark

System	Params	Method	OQS	EM
OverpassT5 (Staniek et al. 2024)	582M	full fine-tune	71.2	20.7
GPT-4 + retrieval	n/a	5-shot ICL	71.4	n/a
Claude-4-Sonnet + retrieval + tag aug	n/a	5-shot ICL	73.2	n/a
OsmT (2025, SOTA)	582M	SFT + tag retrieval	74.4	24.5
GeoQL-4B (this work)	4B	SFT + GRPO, LoRA	68.72	17.4

The project did not beat the published baselines. The gap to OverpassT5 is 2.5 OQS and the gap to SOTA is 5.7 OQS.

1.3 SFT learning curve (rank 64, 5 epochs)

Variant	Epoch	proxy OQS	EM	chrF	KVS	TreeS
full	1	67.30	10.20	68.05	54.79	79.05
full	2	69.40	14.00	69.00	59.74	79.47
full	3	70.76	16.50	70.55	60.71	81.02
full	4	72.01	18.20	71.80	62.35	81.88
full	5	72.22	18.30	72.22	62.14	82.30
noaux	4	72.06	18.20	72.36	61.82	82.01
noaux	5	71.68	18.00	71.87	61.16	82.00

---

2. Failure analysis

This is the core of the document. The question is not "did GRPO crash", because it did not. The question is why a reinforcement learning stage that measurably optimized its own objective produced no measurable improvement on the evaluation metric.

2.1 GRPO optimized its reward successfully

Every reward component rose monotonically over 500 steps. Total reward climbed from about 0.25 to about 0.60. The optimizer was working exactly as intended.

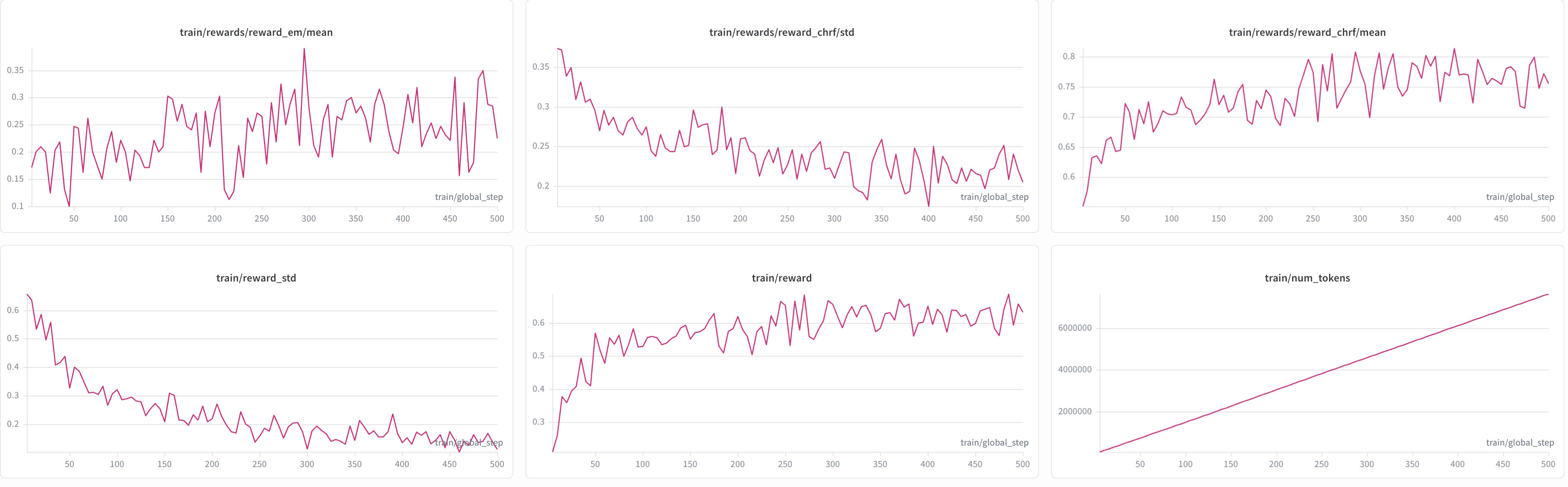

This shows total reward rising from 0.25 to 0.60, and chrF reward rising from 0.58 to 0.78.

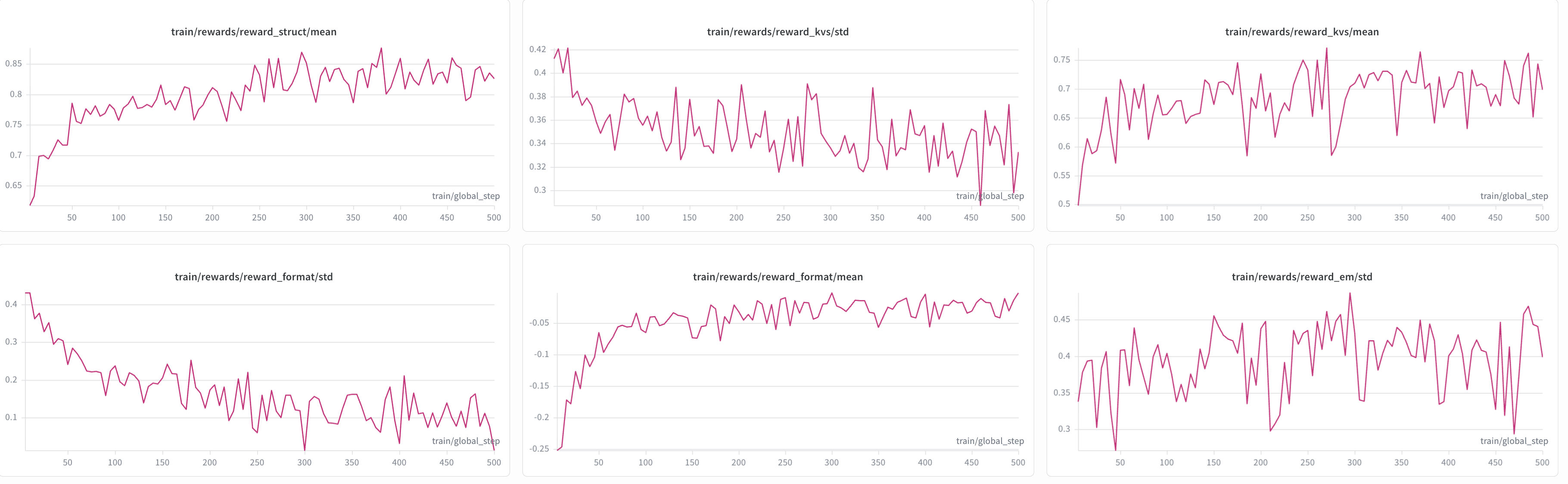

This shows KVS reward rising 0.50 to 0.70, struct reward rising 0.62 to 0.83, and format reward rising from -0.25 to about -0.03.

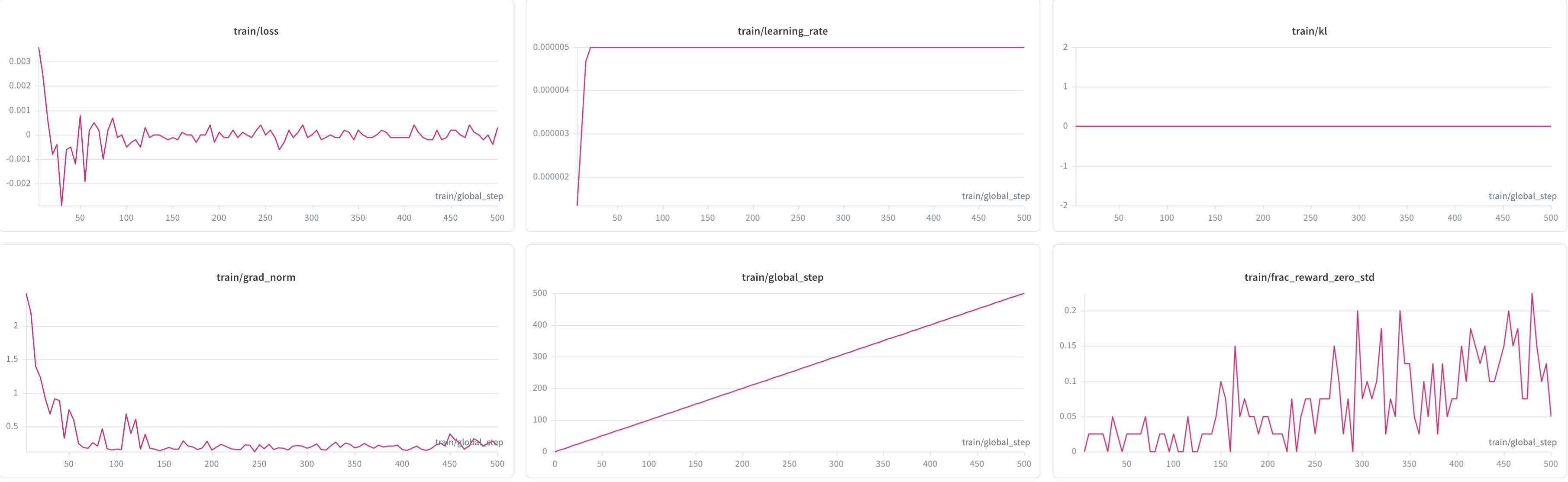

KL is flat at zero because beta was set to 0. Gradient norms are stable. Nothing about the optimization is broken.

Observed training reward at step 500 versus step 0:

Reward component	Start	End	Change
total reward	0.25	0.60	+0.35
reward_kvs	0.50	0.70	+0.20
reward_struct	0.62	0.83	+0.21
reward_chrf	0.58	0.78	+0.20
reward_format	-0.25	-0.03	+0.22

The corresponding change on the official evaluation was +0.23 OQS. A 0.35 rise in training reward bought essentially nothing on the benchmark.

2.2 What actually changed on the eval set: churn, not improvement

Diffing per-example official scores between the SFT winner and the GRPO winner over all 1,000 dev examples:

Measurement	Value
Examples where OQS improved	200
Examples where OQS regressed	191
Examples unchanged	609
Total OQS gained across improved examples	+24.61
Total OQS lost across regressed examples	-22.31
Net	+2.30 (that is +0.23 OQS points over 1000)
Exact matches gained	12
Exact matches lost	21
Catastrophic failures (OQS below 0.10)	13 to 17 (worse)

This is the signature of a policy that moved without learning anything the evaluation rewards. Roughly 39 percent of predictions changed, and the changes were nearly symmetric. GRPO redistributed errors rather than reducing them. Exact match actually got worse, and catastrophic failures increased.

2.3 Root cause 1: the reward was reference-based, so it was largely redundant with SFT

This is the deepest reason and it was baked into the design from the start.

The reward scored similarity to the gold query: KVS overlap against ref_query, chrF against ref_query, exact match against ref_query. But supervised fine-tuning had already optimized toward those exact same gold strings via token level cross entropy. GRPO was therefore re-optimizing a target that SFT had already extracted most of the signal from. It added sequence level shaping, which is why format compliance improved at sampling temperature, but it added almost no information the model had not already been trained on.

Genuine RLVR needs a verifiable outcome reward that is independent of the reference string. For this task that means executing the generated query against an OpenStreetMap database and comparing returned element sets. That reward can distinguish a query that is textually different from the gold but semantically correct, which is exactly the signal SFT cannot provide. We used a proxy of the gold string instead, because planet scale execution was infeasible (the authors' execution database is a 306 GB download, and the public Overpass API cannot be used as a training loop).

2.4 Root cause 2: the binding constraint is knowledge, and RL cannot inject knowledge

Decomposing the 1,000 dev predictions by tag grounding quality:

kv_overlap bucket	Count	Share
Exactly 0 (completely wrong tags)	77	7.7%
Above 0 but below 0.5	302	30.2%
0.5 to below 1.0	220	22.0%
Exactly 1.0 (perfect tags)	401	40.1%

Counterfactual ceilings computed from the same per-example scores:

Scenario	Resulting OQS	Delta
Actual	68.73	baseline
If tag grounding (KVS) were perfect	81.50	+12.77
If structure (xml_overlap) were perfect	78.17	+9.44

Tag grounding is worth nearly 13 OQS points, more than double the 5.7 point gap to the published state of the art. And 7.7 percent of examples have literally zero tag overlap, meaning the model chose entirely the wrong OSM keys and values.

This is a knowledge problem. The model does not know that a beekeeper's workplace is craft=beekeeper rather than workplace=beekeeper. Reinforcement learning reshapes the probability distribution over outputs the model can already produce. It cannot add facts that are not in the weights. Attacking a knowledge bottleneck with a policy gradient method was a category error, and the eval numbers confirm it: kv_overlap went from 61.88 down to 61.69 across the GRPO run.

2.5 Root cause 3: training and evaluation used different decoding regimes

GRPO rollouts were sampled at temperature 1.0. Evaluation used greedy decoding at temperature 0.0. The reward_format curve rising from -0.25 to -0.03 means GRPO learned to stop producing malformed output when sampling at temperature 1.0. But greedy decoding was already clean: the SFT model produced only 14 unparseable outputs out of 1,000 under greedy decoding.

A large share of the measured reward improvement therefore lived in a region of the output distribution that the evaluation protocol never visits. This is a self-inflicted wound and it is straightforward to avoid.

2.6 Root cause 4: the weakest reward proxy absorbed the optimization pressure

Before training, validate_reward_proxy.py measured how well the offline reward components track the official convert-based metrics on 591 perturbed query pairs:

Reward component	Pearson vs official	Spearman vs official
kvs_proxy vs kv_overlap	0.946	0.819
struct_proxy vs xml_overlap	0.835	0.513

The KVS proxy was faithful. The structure proxy was not. During training, reward_struct/mean rose from 0.62 to 0.83, a gain of 0.21, while the real xml_overlap on the evaluation set moved from 71.38 to 71.63, a gain of 0.25 out of 100. The model found the gap between the proxy and the true metric and optimized into it. Giving 0.15 weight to a component with 0.51 rank correlation was a mistake even at that low weight.

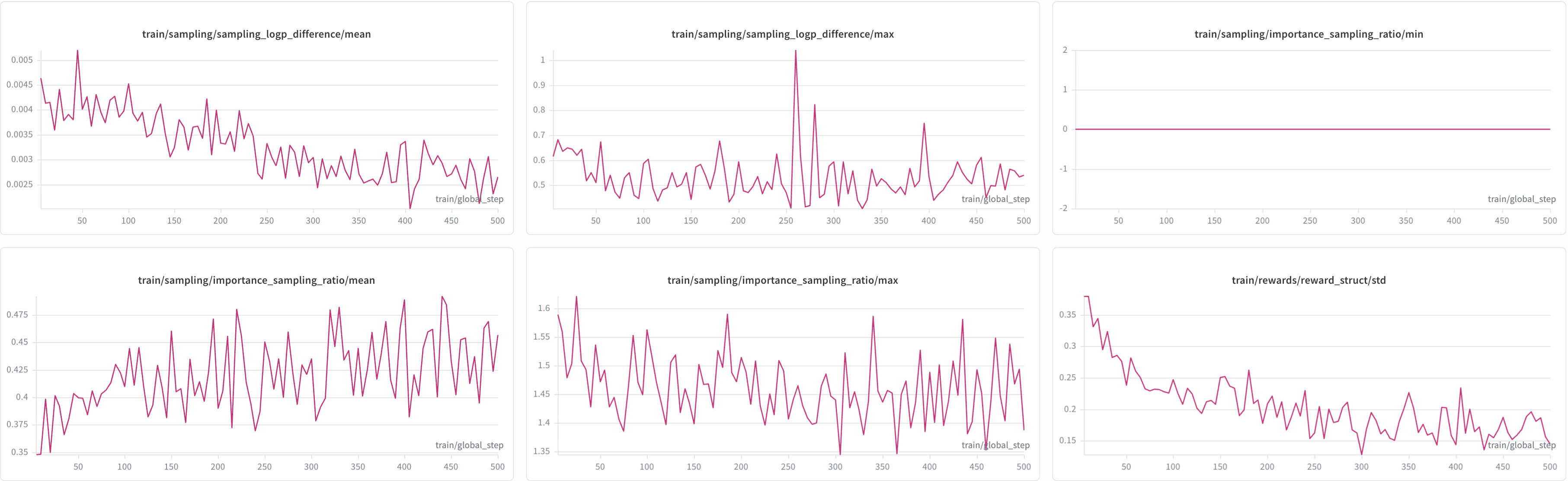

The struct reward standard deviation collapses from 0.38 to about 0.15, showing the policy converging onto a narrow structural pattern.

2.7 Root cause 5: the learning signal collapsed after roughly 200 steps

GRPO advantages are computed within a group of sampled completions. When all completions in a group receive similar rewards, the advantage goes to zero and no gradient flows.

• train/reward_std fell from 0.65 to about 0.15 over the run.
• train/frac_reward_zero_std rose from near 0 toward 0.20, meaning up to a fifth of prompt groups produced identical rewards across all 8 samples and contributed nothing.
• Checkpoint 200 already scored 68.55 OQS. Checkpoints 300 and 400 were worse (68.43, 68.31). Checkpoint 500 at 68.72 is not a trend, it is noise around a plateau.

Steps 200 to 500 cost GPU time and produced no reliable improvement.

2.8 A measurable harm: verbosity drift caused new truncation failures

GRPO made outputs longer, which is a known tendency of RL fine-tuning, and this had a concrete cost because generation was capped at 192 tokens.

Measurement	SFT	GRPO	Gold
Mean raw output length (chars)	245.4	257.2	n/a
Mean extracted query length (chars)	205.8	211.8	202.9
Unparseable outputs (no closed code fence)	14	18	n/a
Of those, caused by truncation	14 (100%)	18 (100%)	n/a
New truncation failures introduced by GRPO		8
Truncation failures fixed by GRPO		4

Every single parse failure in both models is a truncated generation: the model opened a ```overpassql fence and hit the token limit before closing it. GRPO's verbosity drift moved the mean query length away from the gold mean (202.9 chars) and produced a net 4 additional total failures. Each of these scores near zero OQS, which is why catastrophic failures rose from 13 to 17.

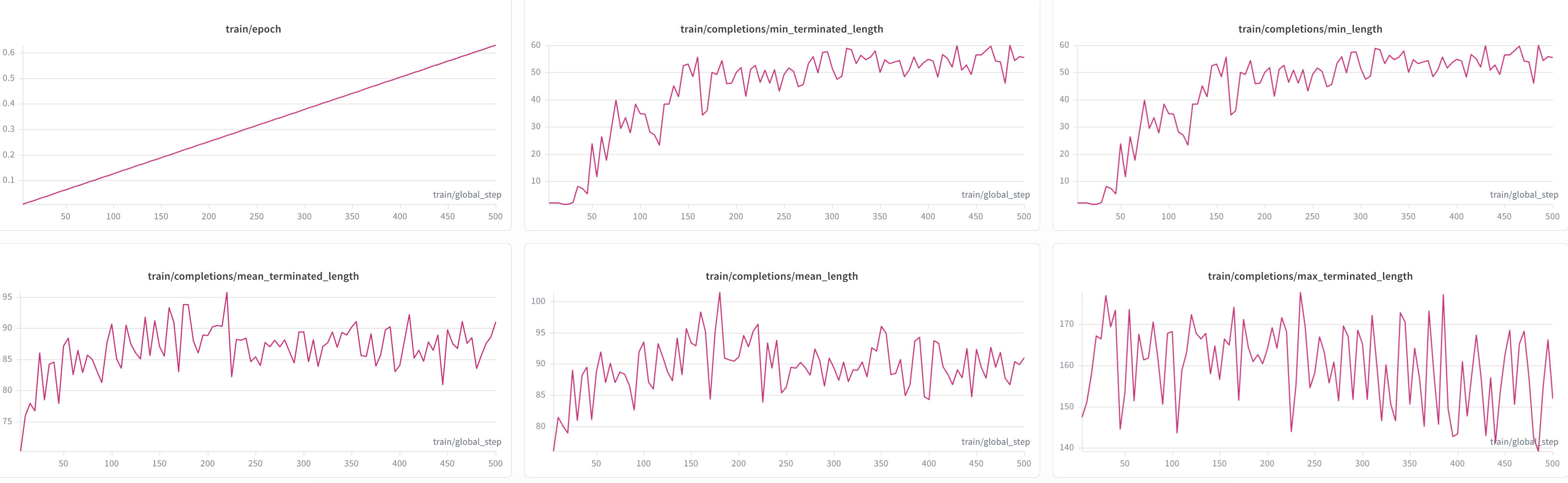

Mean completion length rises from about 77 tokens to about 90 tokens over the run.

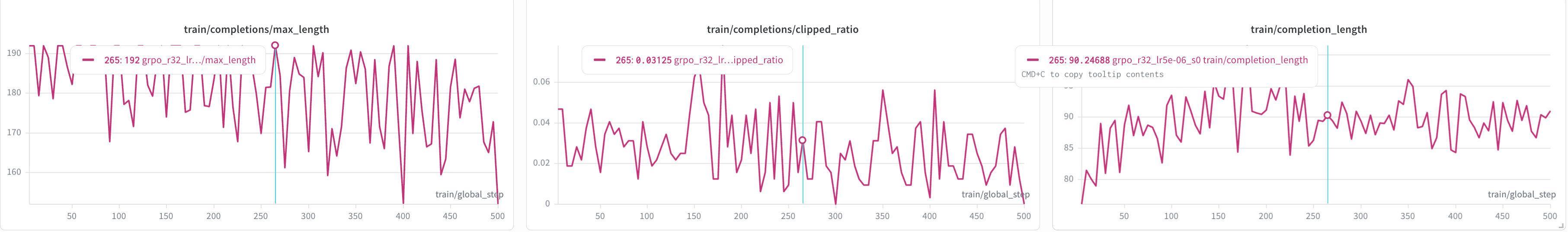

clipped_ratio hovering between 0.01 and 0.07 shows that generations were hitting the 192 token cap throughout training.

2.9 A secondary finding: the aux data effect shrank as capacity grew

The full variant added roughly 4,000 synthetic tag-grounding examples plus 634 reverse explanation examples on top of the 6,349 OverpassNL pairs. The noaux variant used only the OverpassNL pairs.

Setting	full KVS	noaux KVS	Advantage of aux data
LoRA rank 32	60.11	58.64	+1.47
LoRA rank 64	62.14	61.82	+0.28

Added model capacity substituted for explicit tag-grounding data. At rank 64 the aux data was worth almost nothing. This suggests the synthetic templated tag data was too shallow to teach what retrieval-based approaches like OsmT achieve at inference time.

2.10 What was NOT the cause

To be precise about what was ruled out with direct evidence:

• Not a masking bug. The training-time masking check confirmed only the assistant query tokens were unmasked, with the system prompt and question correctly ignored by the loss.
• Not a chat template mismatch. Qwen3-4B-Instruct-2507 emits no think block, and the training text and the generation prompt were verified to align exactly at <|im_start|>assistant\n.
• Not a broken reward implementation. test_reward.py verifies that 300 out of 300 real gold queries score exactly 1.0, that the chrF and exact match implementations reproduce the official OverpassNL functions with zero numerical difference, and that reward ordering is correct across perfect, wrong-tag, malformed, and garbage completions.
• Not an unstable optimization. Gradient norms, loss, and importance sampling ratios were all well behaved for the entire run.

The pipeline was correct. The research hypothesis was wrong.

---

3. What we would do differently

Ordered by expected value, based on the measurements above.

3.1 Attack the knowledge bottleneck, not the policy

The counterfactual analysis says tag grounding is worth 12.77 OQS. Nothing else comes close. Three ways to get it, in increasing order of cost:

1. Inference-time tag retrieval, which is what OsmT does to reach 74.4. Embed the OSM wiki tag descriptions, retrieve candidate tags for the user request, and place them in the prompt. This is a documented, working path to state of the art on this benchmark and it requires no additional training.
2. Full fine-tuning instead of LoRA. OverpassT5 reached 71.2 with a full fine-tune of a 582M model. LoRA rank 64 on a 4B model reached 68.49. Adapter capacity is plausibly limiting memorization of a long tail of tags. The code path exists in scripts/sft_modal.py behind the --full_ft flag but was not run.
3. Deeper synthetic tag data. The templated tag data used here was too shallow. Real usage examples per tag, mined from the OSM wiki and taginfo with natural phrasings, would be a better substitute for retrieval.

3.2 If doing RL at all, make the reward execution-grounded

The correct RLVR design for this task rewards whether the query returns the right elements, not whether it looks like the gold string. Practical route: restrict RL training to prompts resolvable within a regional OSM extract (a country level Geofabrik extract in a local Overpass container), and use Jaccard overlap of returned element IDs as the reward. This is a much smaller training set, but it is real verification and it can reward semantically correct queries that differ textually from the reference.

3.3 Fix the specific mistakes

Mistake	Fix
Rollouts at temperature 1.0, eval greedy	Evaluate at the sampling temperature used in training, or train nearer the eval regime
Weak struct proxy in the reward at 0.15 weight	Drop any component whose rank correlation with the true metric is below about 0.7
Fixed 192 token cap causing truncation	Raise the cap to about 320 tokens, or add an explicit penalty for unterminated generations
No length control	Add a mild length penalty toward the gold length distribution to counter verbosity drift
Ran 500 steps after signal collapsed at 200	Early stop on frac_reward_zero_std and reward_std, and evaluate on dev during training rather than only after
Single seed	The +0.23 result is meaningless without at least 3 seeds to establish the noise band

3.4 Reconsider the base model

Qwen3 uses byte pair encoding. OverpassT5 and OsmT use ByT5, which is byte level and better matched to the punctuation dense syntax of OverpassQL. A 4B decoder losing to a 582M byte level encoder decoder on this task is a real signal about tokenizer fit, not just about scale. Testing a byte level or character aware model would be a legitimate experiment.

---

4. Reproducing this work

4.1 Setup

git clone https://github.com/TheDeadcoder/GeoQL-4B.git && cd GeoQL-4B
uv venv --python 3.10 && source .venv/bin/activate
uv pip install sacrebleu numpy requests modal huggingface_hub

# dataset ships inside the vendored upstream repo
cd OverpassNL/dataset && unzip -o OverpassNL_v1.zip && unzip -o comments.zip && cd ../..

# verify the reward implementation against the official metric
python scripts/test_reward.py          # expect ALL TESTS PASSED, chrF delta 0.00e+00

# build training data
python scripts/prepare_sft_data.py --use_comments --out_dir data_out

4.2 Modal setup

modal setup
modal volume create geoql-data && modal volume create geoql-ckpts && modal volume create geoql-hf
modal secret create hf-token HF_TOKEN=hf_yourWriteToken
modal secret create wandb WANDB_API_KEY=your_key

for f in data_out/*.jsonl; do modal volume put geoql-data "$f" "/$(basename $f)"; done
for s in dev test; do for e in nl query bbox; do
  modal volume put geoql-data "OverpassNL/dataset/dataset/dataset.$s.$e" "/dataset.$s.$e"; done; done

modal run scripts/modal_hello.py       # sanity check GPU and volumes

4.3 Train and evaluate

# SFT
modal run scripts/sft_modal.py --action train --variant full  --rank 64 --epochs 5
modal run scripts/sft_modal.py --action train --variant noaux --rank 64 --epochs 5

# generate dev predictions for a checkpoint
modal run scripts/sft_modal.py --action generate \
  --adapter sft_full_r64_lr0.0001_s0/checkpoint-1720 --name full64_e5
modal volume get geoql-ckpts preds/full64_e5_dev.jsonl preds/

# fast offline scoring (no convert endpoint needed)
python scripts/score_offline.py --raw preds/full64_e5_dev.jsonl --split dev --show_worst 5

# official scoring
python scripts/make_preds.py --raw preds/full64_e5_dev.jsonl --out preds/full64_e5_dev.txt
cd OverpassNL/evaluation && python run_evaluation.py \
  --ref_file ../dataset/dataset/dataset.dev \
  --model_output_file ../../preds/full64_e5_dev.txt --compute_execution false

# promote to Hugging Face
modal run scripts/sft_modal.py --action merge_push \
  --adapter sft_full_r64_lr0.0001_s0/checkpoint-1720 --repo Melikshah/GeoQL-4B-SFT

# GRPO
modal run scripts/grpo_modal.py --action train --max_steps 500

4.4 A note on the official convert endpoint

The official evaluator calls an Overpass /api/convert endpoint to turn OverpassQL into XML for the kv_overlap and xml_overlap metrics. Two gotchas cost time here:

1. The upstream converter issues requests.get(url) with no headers, and the public overpass-api.de front end rejects the default python-requests user agent with HTTP 406. Sending a browser style User-Agent and Accept header fixes it. This is patched in scripts/validate_reward_proxy.py.
2. /api/convert only parses the query and never reads the database, so a local Overpass container initialized with a small regional extract can serve conversions for the entire globally distributed dev and test sets:

docker run -d --name overpass --platform linux/amd64 \
  -e OVERPASS_META=yes -e OVERPASS_MODE=init \
  -e OVERPASS_PLANET_URL=https://download.geofabrik.de/asia/bangladesh-latest.osm.pbf \
  -v $PWD/overpass_db:/db -p 12346:80 wiktorn/overpass-api
# then pass --convert_url http://localhost:12346/api/convert

---

5. Repository layout

scripts/
  reward.py                  reward primitives; EM and chrF exactly replicate the official metric
  test_reward.py             correctness tests for the above, run against the real dataset
  prepare_sft_data.py        builds sft_train.jsonl, sft_dev.jsonl, grpo_train.jsonl
  score_offline.py           fast convert-free OQS proxy for checkpoint selection
  make_preds.py              converts raw generations to official one-query-per-line format
  validate_reward_proxy.py   measures proxy vs official metric correlation
  sft_modal.py               Modal app: SFT train, vLLM generate, merge and push to HF
  grpo_modal.py              Modal app: GRPO train with five separate reward components
  modal_hello.py             GPU and volume sanity check
preds/
  r64_20260614/              SFT rank 64 predictions, per-epoch scores, official results
  grpo_20260615/             GRPO predictions per checkpoint, official results
data_out/stats.json          dataset build statistics
proxy_validation.csv         591 rows of proxy vs official metric measurements
OverpassNL/                  vendored upstream dataset and official evaluation code

Design notes worth reusing

• Two-tier evaluation. score_offline.py computes a convert-free OQS proxy in seconds for ranking checkpoints, and the official run_evaluation.py confirms the final pick. This kept the iteration loop fast without ever selecting on a self-written metric.
• Reward components as separate functions. grpo_modal.py registers five reward functions rather than one composite, so TRL logs each independently. This is the only reason the struct proxy gaming in section 2.6 was visible at all.
• Proxy validation before training. validate_reward_proxy.py measured proxy fidelity against the official metric on perturbed pairs before any GPU time was spent. It correctly predicted which component would be unreliable.

---

6. Cost and compute

Stage	Hardware	Approximate time	Approximate cost
SFT rank 32, 2 variants	Modal L40S	3 hours	6 USD
SFT rank 64, 2 variants	Modal L40S	3 hours	6 USD
Per-checkpoint dev generation	Modal L40S	2 hours	4 USD
GRPO 500 steps	Modal H100	4 hours	17 USD
Merge and push	Modal A10G	0.5 hours	1 USD
Total			about 35 USD

Local development and all official evaluation ran on an Apple M4 Max with 36 GB unified memory.

---

7. Acknowledgements and citation

The dataset, the evaluation code, and the OQS metric are the work of Staniek et al. This repository vendors their code under OverpassNL/ for reproducibility.

@article{staniek2024overpassnl,
  title={Text-to-OverpassQL: A Natural Language Interface for Complex Geodata Querying of OpenStreetMap},
  author={Staniek, Michael and Schumann, Raphael and Riezler, Stefan},
  journal={Transactions of the Association for Computational Linguistics},
  year={2024}
}

The upstream repository does not carry a top level license file. The vendored code and dataset are included here for research reproducibility only. Anyone intending commercial use should contact the original authors first.

Base model: Qwen/Qwen3-4B-Instruct-2507 by Alibaba Cloud. Training used Unsloth and TRL, with Modal for compute and vLLM for batch inference.

---

8. Status

The SFT model is released and usable. The GRPO experiment is documented as a negative result. The most likely path to improving on this work is inference-time tag retrieval combined with a full fine-tune, not more reinforcement learning against a reference-based reward.
