feat(review): upload visual-capture screenshots to a public R2 bucket

[JSONbored]

Summary

• Advances fix(review): visual-capture screenshots render as broken images on self-host (private origin) #4184. PR fix(review): warn at boot when PUBLIC_API_ORIGIN/PUBLIC_SITE_ORIGIN look private #4185 added a boot-time advisory for a PUBLIC_API_ORIGIN that looks private, but for an instance that's deliberately, permanently private (e.g. Tailscale-only, no public HTTP surface by design), no value of PUBLIC_API_ORIGIN can ever fix the broken-screenshot symptom — the whole approach of linking through this instance's own origin is the wrong shape for that deployment.
• Adds an optional, config-driven alternative: R2_PUBLIC_ACCOUNT_ID / R2_PUBLIC_BUCKET / R2_PUBLIC_ACCESS_KEY_ID / R2_PUBLIC_SECRET_ACCESS_KEY / R2_PUBLIC_BASE_URL (all five required together, otherwise not configured — byte-identical to today). When set, every captured screenshot (before/after PNGs, pixel-diff overlays, scroll-through GIFs, and the actions-fallback workflow's own captures) is uploaded a second time to a dedicated, deliberately public Cloudflare R2 bucket, and its direct URL used in the PR comment instead of the private instance's own origin — so the private instance itself never has to answer a single public request.
• New src/selfhost/r2-public-upload.ts: a minimal, self-host-only (Node node:crypto) AWS SigV4 request signer for R2's S3-compatible API. No new dependency — hand-rolled rather than pulling in @aws-sdk/client-s3 for the one operation this needs (a single-object PUT).
• A cache-hit is trusted to already be mirrored to the public bucket (since both writes always happen together going forward), so there's no double-upload cost on repeat reviews of the same head SHA — documented as a one-time transition caveat for any local cache entry written before this feature was enabled.

Scope

• Conventional Commit title.
• Focused — one new capability (public-bucket mirroring), no unrelated changes.
• Follows CONTRIBUTING.md.
• Owner PR — linked issue eligibility gate does not apply; advances fix(review): visual-capture screenshots render as broken images on self-host (private origin) #4184 (does not close it — see Notes).

Validation

• git diff --check
• npm run typecheck
• npm run docs:drift-check
• npm run selfhost:env-reference — regenerated, 5 new vars appear.
• npm run db:migrations:check, npm run cf-typegen:check — clean (no schema/binding changes; these are plain self-host runtime env vars).
• npm audit --audit-level=moderate — 0 vulnerabilities.
• SigV4 signer independently cross-checked against a Python (hmac/hashlib) reference implementation for a fixed test vector — exact match — before trusting it in any test.
• End-to-end verified against a real R2 bucket before writing any test: created a dedicated bucket, enabled its public dev URL, signed and uploaded a real object, fetched it back publicly, confirmed byte-identical content, then deleted the test object.
• npx vitest run test/unit/r2-public-upload.test.ts test/unit/visual-capture.test.ts test/unit/queue.test.ts — all green; 100% line/branch/function coverage on src/selfhost/r2-public-upload.ts; every changed line/branch in src/review/visual/capture.ts and src/queue/processors.ts covered (confirmed via git diff cross-referenced against the coverage report — pre-existing gaps in code this PR doesn't touch were left alone).
• npm run test:changed (against origin/main) — 2181/2181 passing.
• npm run test:workers, build:mcp, test:mcp-pack, ui:openapi:check, ui:lint, ui:typecheck, ui:build — not re-run locally (no worker-entry/MCP/OpenAPI/UI-component code touched); CI runs them authoritatively.

Safety

• No secrets committed — the R2 credentials used for end-to-end verification were passed only as inline environment variables for one-off local commands, never written to a file in this repo or worktree.
• No behavior change for any repo/instance that doesn't opt in.
• Non-blocking by design: an upload failure falls back to the existing private-origin URL, never breaks the review.

Notes

Remaining before this actually fixes the live instance: cut a new self-host release image including this code, deploy it, then set the five R2_PUBLIC_* values in the live .env — none of that is part of this PR.

[cloudflare-workers-and-pages]

Deploying with    Cloudflare Workers

The latest updates on your project. Learn more about integrating Git with Workers.

Status	Name	Latest Commit	Preview URL	Updated (UTC)
✅ Deployment successful! View logs	gittensory-ui	dddff88	Commit Preview URL Branch Preview URL	Jul 08 2026, 12:12 PM

[superagent-security]

Superagent didn't find any vulnerabilities or security issues in this PR.

[codecov]

Codecov Report

✅ All modified and coverable lines are covered by tests.
✅ Project coverage is 93.77%. Comparing base (8048163) to head (dddff88).
⚠️ Report is 1 commits behind head on main.
✅ All tests successful. No failed tests found.

Additional details and impacted files

@@            Coverage Diff             @@
##             main    #4209      +/-   ##
==========================================
+ Coverage   93.75%   93.77%   +0.01%
==========================================
  Files         389      390       +1
  Lines       36495    36549      +54
  Branches    13373    13384      +11
==========================================
+ Hits        34217    34273      +56
+ Misses       1621     1620       -1
+ Partials      657      656       -1

Files with missing lines	Coverage Δ
src/queue/processors.ts	95.32% <100.00%> (+<0.01%)	⬆️
src/review/visual/capture.ts	93.29% <100.00%> (+1.90%)	⬆️
src/selfhost/r2-public-upload.ts	100.00% <100.00%> (ø)

🚀 New features to boost your workflow:

• 📦 JS Bundle Analysis: Save yourself from yourself by tracking and limiting bundle sizes in JS merges.

[loopover-orb]

Caution

🟥🟥🟥🟥🟥🟥🟥🟥🟥🟥🟥🟥

🛑 Gittensory review result - fixes required

_{Review updated: 2026-07-08 19:54:47 UTC}

9 files · 1 AI reviewer · 4 blockers · readiness 93/100 · CI failing · dirty

🛑 Suggested Action - Manual Review

• No linked issue detected — If this PR is intended to solve an issue, link it explicitly in the PR body.
• Maintainer requires a linked issue — Link the relevant issue (for example Closes #123) before opening the PR.
• AI reviewers agree on a likely critical defect: src/review/visual/capture.ts capturePage (~line 274) and captureScrollGif (~line 373), and the storeVisualCaptureFallbackShots (src/queue/processors.ts:4540) / resolveFallbackAfterShot (src/review/visual/capture.ts ~line 300) pair, all write to env.REVIEW_AUDIT before attempting the public R2 upload
• if that upload transiently fails (network blip, R2 rate limit — a case uploadToPublicR2Bucket explicitly catches and returns undefined for), the current request correctly falls back to localUrl, but the key is now cached, so every subsequent cache-hit on that fingerprint trusts it's mirrored and returns publicUrlForKey(...) for an object that was never actually PUT to the bucket — a permanently broken public URL with no retry path, reproducing the exact bug fix(review): visual-capture screenshots render as broken images on self-host (private origin) #4184 is meant to fix. — Resolve the flagged defect, or override if the AI reviewers are mistaken, then re-run the gate.
• Possible leaked secret in the diff (aws_access_key, generic_secret_assignment) — Remove the secret from the diff, rotate the exposed credential, then re-run the gate.

Review summary
This adds an optional, config-gated mirror of visual-capture screenshots to a public R2 bucket so PR comments render even when the self-host instance's PUBLIC_API_ORIGIN is deliberately private. The SigV4 signer is hand-rolled but well-verified (cross-checked against an independent Python-computed test vector), and the default (unconfigured) path is byte-identical to today. However, all four call sites (capturePage, captureScrollGif, and the fallback-shot store/resolve pair) write the object into the local REVIEW_AUDIT cache unconditionally, then attempt the public-bucket mirror as a separate, non-atomic step whose failure is silently swallowed — a later cache hit on that same key blindly trusts it was already mirrored and returns a public URL for an object that was never actually uploaded, permanently reproducing the exact broken-image symptom this PR sets out to fix.

Blockers

• src/review/visual/capture.ts capturePage (~line 274) and captureScrollGif (~line 373), and the storeVisualCaptureFallbackShots (src/queue/processors.ts:4540) / resolveFallbackAfterShot (src/review/visual/capture.ts ~line 300) pair, all write to env.REVIEW_AUDIT before attempting the public R2 upload; if that upload transiently fails (network blip, R2 rate limit — a case uploadToPublicR2Bucket explicitly catches and returns undefined for), the current request correctly falls back to localUrl, but the key is now cached, so every subsequent cache-hit on that fingerprint trusts it's mirrored and returns publicUrlForKey(...) for an object that was never actually PUT to the bucket — a permanently broken public URL with no retry path, reproducing the exact bug fix(review): visual-capture screenshots render as broken images on self-host (private origin) #4184 is meant to fix.

Nits — 5 non-blocking

• uploadToPublicR2Bucket (src/selfhost/r2-public-upload.ts) swallows every failure with a bare catch and no logging, so an operator has no signal that public mirroring is silently degrading beyond noticing broken images in PR comments — worth at least a debug/warn log on the failure branch.
• resolveR2PublicUploadConfig(env) is re-parsed from scratch on every capturePage/captureScrollGif/uploadDiffImage/resolveFallbackAfterShot invocation instead of being resolved once per request/build and threaded through — cheap, but repeated string checks on a hot path.
• test/unit/r2-public-upload.test.ts and queue.test.ts use the well-known AWS documentation example key AKIAIOSFODNN7EXAMPLE and a matching example secret — these are the standard public test-vector credentials, not a real leak, but worth a one-line comment noting that for anyone scanning secrets later.
• Only write to env.REVIEW_AUDIT after (or store alongside a marker of) a confirmed-or-attempted public upload, e.g. gate the local put on the public upload outcome when r2Public is configured, or store the mirrored-URL result (success/localUrl) as part of the cached value instead of re-deriving it from bucket presence alone.
• Add a regression test that simulates: first request's public upload fails (falls back to localUrl correctly) → second request for the same fingerprint hits the REVIEW_AUDIT cache → assert it does NOT blindly return a public URL for an unmirrored object.

Why this is blocked

• src/review/visual/capture.ts capturePage (~line 274) and captureScrollGif (~line 373), and the storeVisualCaptureFallbackShots (src/queue/processors.ts:4540) / resolveFallbackAfterShot (src/review/visual/capture.ts ~line 300) pair, all write to env.REVIEW_AUDIT before attempting the public R2 upload; if that upload transiently fails (network blip, R2 rate limit — a case uploadToPublicR2Bucket explicitly catches and returns undefined for), the current request correctly falls back to localUrl, but the key is now cached, so every subsequent cache-hit on that fingerprint trusts it's mirrored and returns publicUrlForKey(...) for an object that was never actually PUT to the bucket — a permanently broken public URL with no retry path, reproducing the exact bug fix(review): visual-capture screenshots render as broken images on self-host (private origin) #4184 is meant to fix.
• No linked issue detected — If this PR is intended to solve an issue, link it explicitly in the PR body.
• Maintainer requires a linked issue — Link the relevant issue (for example Closes #123) before opening the PR.
• Possible leaked secret in the diff (aws_access_key, generic_secret_assignment) — Remove the secret from the diff, rotate the exposed credential, then re-run the gate.

CI checks failing

• validate
• validate-code

Signal	Result	Evidence
Code review	❌ 4 blockers	1 reviewer
Linked issue	⚠️ Missing	No linked issue or no-issue rationale found.
Related work	✅ No active overlap found	No same-issue or scoped active PR overlap found.
Change scope	✅ 20/20	Low review scope from cached public metadata (no linked issue context).
Validation posture	✅ 25/25	PR body includes validation/test evidence.
Contributor workload	✅ 10/10	Author activity: 52 registered-repo PR(s), 43 merged, 497 issue(s).
Contributor context	✅ Confirmed Gittensor contributor	JSONbored; Gittensor profile; 52 PR(s), 497 issue(s).
Gate result	❌ Blocking	Repo-configured hard blocker found.

Review context

• Author: JSONbored
• Role context: owner (maintainer lane)
• Public audience mode: oss maintainer
• Lane context: Repository is configured for direct PR review.
• Public profile languages: not available
• Official Gittensor activity: 52 PR(s), 497 issue(s).
• PR-specific overlap: none found.

Contributor next steps

• Treat this as maintainer-lane context rather than normal contributor-lane activity.
• Explain no-issue PR.
• Link the issue being solved, or explicitly explain why this is a no-issue PR.

Signal definitions

• Related work = same linked issue, overlapping active PRs, or title/path similarity.
• Change scope = cached public metadata such as size labels, draft state, and review-burden hints.
• Validation posture = whether the PR provides enough public validation/test evidence for maintainer review.
• Contributor workload = public contributor activity and cleanup pressure, not a repo-wide quality failure.
• Contributor context = public GitHub/Gittensor identity context; non-Gittensor status is not a blocker.

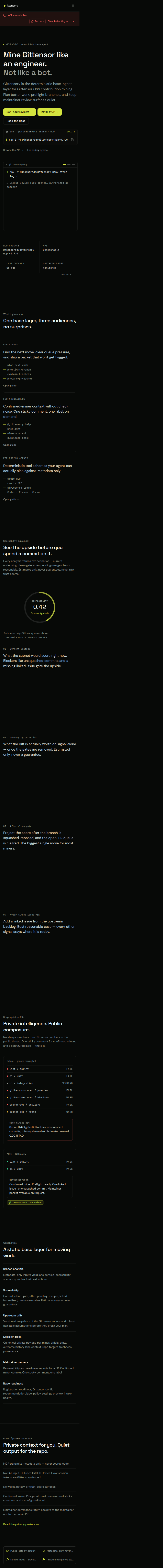

Visual preview

Route	Viewport	Before (production)	After (this PR's preview)	Diff
/	desktop	—		—
/	mobile	—		—

Click any thumbnail to open the full-size screenshot. Before = production · After = this PR's preview deploy.

_{🟩 Safe / merged · 🟦 Advisory · 🟨 Held for review · 🟥 Blocked / closed}

---

💰 Earn for open-source contributions like this. Gittensor lets GitHub contributors earn for the work they already do — register to start earning →.

Checked by Gittensory, a quiet PR intelligence layer for OSS maintainers.

• Re-run Gittensory review

[JSONbored]

Closing as superseded by #4203, which landed a more complete version of this same idea (advances #4184) — a generic S3-compatible backend (aws4fetch, region-aware, bounded retry budget, delete() parity) replacing REVIEW_AUDIT's own backend selection, rather than this PR's parallel-upload-to-a-second-bucket approach. #4203 was opened before this PR and is already merged.

The bucket + credentials created for this PR (gittensory-visual-capture-public) can still be reused as the actual S3-compatible bucket #4203's REVIEW_AUDIT_S3_* config points at — no need to provision a second one.
